Magnetic Iron Oxide Nanoparticles as T2 MR Imaging Contrast Agent for Detection of Breast Cancer (MCF-7) Cell


PDF - Export to EndNote - PubMed Central XML format - PubMed Central XML format - PubMed Central XML format
PMID: 29090067 (PubMed) - PMCID: PMC5650735 - View online: PubReader
Volume 9, Issue 4, October-December , Page 181 to 188
Sunday, May 22, 2016 :Received , Monday, October 31, 2016 :Accepted


  • Corresponding author Department of Medical Physics, Facutly of Medicine Isfahan University of Medical Sciences, Isfahan, Tel: +98 31 37929095, Fax: +98 31 36688597, E-mail: shahbazi24@yahoo.com, shahbazi@med.mui.ac.ir
    - Department of Medical Physics, Faculty of Medicine, Isfahan University of Medical Sciences, Isfahan, Iran

  • - Child Growth and Development Research Center, Research Institute for Primordial Prevention of Non-communicable Disease, Isfahan University of Medical Sciences, Isfahan, Iran

Abstract:

Background: Advances of nanotechnology have led to the development of nano-materials with both potential diagnostic and therapeutic applications. Among them, Super Paramagnetic Iron Oxide Nanoparticles (SPIONs) have received particular at-tention. Modified EDC coupling fraction was used to fabricate the SPION-C595 as an MR imaging contrast agent for breast cancer detection in early stages.
Methods: Nanoprobe characterization was confirmed using Fourier Transform Infrared Spectroscopy (FT-IR), Scanning Electron Microscopy with Energy Dispersive X-Ray Spectroscopy (SEM-EDAX), and Photon Correlation Spectroscopy (PCS). Protein and iron concentration of nanoprobe was examined by standard method. MTT assay was performed to evaluate the cytotoxicity of the nanoprobe in breast cancer cell line (MCF-7). T2-weighted MR imaging was performed to evaluate the signal enhancement on T2 relaxation time of nanoprobe using spin-echo pulse sequence.
Results: As results showed, SPIONs-C595 provided active targeting of breast cancer cell (MCF-7) at a final concentration of 600 µgFe/ml. The final concentration of protein was calculated to be at 0.78 µgprotein/ml. The hydrodynamic size of the nano-probe was 87.4±0.7 nm. The MR imaging results showed a good reduction of T2 relaxation rates for the highest dose of SPIONs-C595.
Discussion: Based on the results, SPIONs-C595 nanoprobe has a potential in T2-weighted MR imaging contrast agent for breast cancer cell (MCF-7) detection.







Introduction :

Recently, nanotechnology has turned out to be a fundamental word of public attention. Among all kinds of nanoparti-cles, biocompatible Superparamagnetic Iron Oxide Nanoparticles (SPIONs) with appropriate surface as well as structure were considered as molecular imaging and drug delivery tools 1-3. SPIONs have an outstanding function as greatly sen-sitive molecular- specific imaging nanoprobes 4. Magnetic Fe3O4 is a very common type of iron oxide, which has advantages including high magnetization 5, hyperthermia 6 together with biocompatibility for in vivo as well as in vitro features. Iron oxide nanoparticle compounds identified by the nanosized diameter and their structure allow different biodistribution and possibility of imaging chemical agents 7.
Nanomedicine plays an essential role by delivering the contrast agent in a targeted manner to specific tumor cells, lead-ing to improvement in accurate diagnosis by good visualization and specific demonstration of tumor cells. Effective and specific diagnostic imaging of breast cancer in early stages is a major challenge 8,9.
By taking advantage of nanoparticles as contrast agents, potential of MR imaging might be extended to diagnosis of tumors in the early stages 10. The main purpose of using contrast agents is to enhance signal intensity which is the fact of shortening relaxation times. Diagnostic imaging of tumors using mabs has previously been investigated 11,12. High molecular weight glycoproteins are usually identified as mucins or mucin-like glycoproteins. One of the targets at breast tumor is breast specific membrane antigen (MUC1). The C595 mabs has been considered as a reagent of clinical ap-plicability and utilized in immunoassays for determination of circulating mucin in individuals with breast cancer. C595 mabs contains immunogenicity due to its murine origin in addition to poor tumor penetration characteristics due to large molecular size (150 kDa) 13.
Among molecular imaging techniques, the MR imaging provides very high spatial resolution along with soft tissue con-trast. With the use of specific molecular contrast agents, MR imaging allows imaging on anatomic-morphologic and molecular ranges with a single method. In particular, SPIONs are perfectly useful for cell imaging because they promote strong susceptibility effects that make it possible for sensitive detections of even small amounts of cellular material. In MR imaging, contrast is generated by modulation of water relax-ivity (inverse of T1 and T2 relaxation times) through its chemical environment or through the introduction of contrast agents that modulates the local magnetic field 14.
One of the new approaches is to investigate the increases of the specificity of MR image contrast agents by using mab C595 coupled with SPIONs. In the research by Liu et al, the contrast agent (C225-USPION) which was the result of conjugating Ultra SPION and cetuximab for detecting the epithelial growth factor re-ceptors was introduced 15. Binding USPION with C595 mab, in order to detect in vivo MUC1 expression, was studied by Shanehsazzadeh et al 16. They used a dual contrast agent, C595 antibody-conjugated USPION la-beled with 99mTc as the target of anti-MUC1-expressing cancers for imaging and therapy purposes. Shahbazi-Gahrouei et al studied on developing ovarian cancer (OVCAR3) by C595 mab which was bounded to SPI-ONs. The strategy was using SPIONs attached to C595 mAb that bound to the MUC1, in order to detect ovarian cancer cells by using MR imaging 12.
This study investigated the fabrication, characterization and application of a specific breast cancer MR imaging contrast agent, C595-mab conjugated SPIONs (SPIONs-C595) by simplified EDC method, for breast cancer detection with MUC1 over expression in early stages as an MR imaging contrast agent.




Materials and Methods :

All chemicals were purchased by Sigma (USA) and were used without further purification. Nanomag-D-spio 20 nm nanoparticles (surface COOH) as well as miniMACS separator in addition to C595 mab were purchased from Miltenyi Biotech GmHb, Germany. The breast cancer cell line, (MCF-7) EA.hy926 cell as control was obtained from ATCC, USA. MCF-7 and EA.hy926 cells were routinely cultured in pre-warmed DMEM (37ºC in water bath) supplemented with 10% of Fetal Bovine Serum (FBS), antibiotics (100 IU/ml penicillin and 100 μg/ml streptomycin), 1% v/v essential amino acids and 2 mM L-glutamine and used for further procedure.
Conjugation of mab C595 with SPIONs: A 500 µl of the nanomag®-D-spio (Miltenyi Biotech GmbH, Germany) was mixed with working solution. The working solution was prepared by  adding 0.6 mg (3 µmol) N-ethyl-N-(3-dimethyl aminopropyl) car-bodiimide hydrochloride (EDC) and 1.2 mg (10 µmol) N- hydroxyl Succinimide (NHS) in 125 µl 0.5 M 2-(N-morpholino) ethanesulfonic acid (MES) buffer according to the Gruttner et al 17. For neutral pH reaction, a phosphate buffer at 0.5 M was appropriate. The suspension was mixed for 90 min at room temperature by a shaker. Then, suspension was washed twice with 1 ml Phosphate Buffered Saline (PBS), pH=7.4 through MS column. To activate the columns before adding mixture, the columns were washed three times with PBS, pH=7.4, each time. Then, 100 µl C595 mab was added for nanoparticles activation and the suspension was shaken for 3 hr. After 3 hr, the suspension was washed two times with 1 ml PBS through MS column. In this step, unconjugated antibodies were separated from conjugated ones. Figure 1 shows chemical schematic of this reaction. As seen in this figure, only when the carboxyl groups of the SPION were activated, the C595 mab attached to the SPION surface 18.
Surface chemistry: A 1 ml bulk nanomag®-D-spio solution and SPI-ONs-C595 were frozen in 15 ml falcon tube at -20°C for 12 hr at -18°C (Elba EF-3500, Italy). The samples were then freeze-dried under vacuum at -50°C for 48 hr using a freeze-drying system (Labconco FreeZone 6, USA). Transmission FTIR spectra were recorded from thin KBr disc of the samples with Perkin Elmer 2000 FTIR spectrophotometer at room temperature (25ºC). The samples were scanned from 4000 to 400 cm−1, and the range of wavelength was in infrared zone. All the spectra were collected after an average of 16 scans for each specimen. The analysis was done automatically by software implemented at School of Chemical Sciences, USM.
Visualization of the morphology of SPIONs-C595: Scanning Electron Microscopy with Energy Dispersive X-Ray Spectros-copy (SEM/EDAX) was used to study the surface morphology of the samples, which included nanomag®-D-spio dried in an oven by 60°C over night and SPIONs-C595 freeze-dried as mentioned earlier. Samples were fixed onto the specimen holder by using double face adhesive tape and were coated with Cadmium using Quorum sputter coater (Q150T ES, UK). The samples were then examined under a scanning electron microscope (Quanta FEG 560, USA) located at the Centre for Global Archaeological Research, USM. Images were captured under conventional secondary electron imaging conditions with an acceleration voltage of 10 kV and at different magnifications of 100, 500, and 3000 folds. The samples were vacuumed for 5 to 10 min before analysis.
Particle size and PCS: Particle size, Polydispersity Index (PDI) and zeta potential were determined by photon correlation spectroscopy (PCS) using a Zetasizer nano zs (Malvern Instruments Ltd, UK). The two nanomag®-D-spio and SPIONs-C595 suspensions were diluted in DIW and MES buffer, respectively. The samples were mixed well by pipette in order to obtain a uniform suspension to avoid any agglomeration. Prior to measurement, the samples were filtered through 0.2 nm syringe filter to separate any visible particles in the samples. Analysis was performed in INFORMM, USM.
Iron and protein concentration measurement: Iron concentration of SPIONs-C595 nanoprobe was obtained by Potassium Thiocyanate method 18. Briefly, to get the calibration curve to measure the concentration of the finalized compound, Iron atomic spectroscopy standard, 1 g Fe (Sigma-Aldrich) was used. Before preparing the series of different concentra-tions of the standard solution, the Potassium Thiocyanate (KSCN) solution as well as 6N HNO3 containing 1% H2O2 was prepared in a 50 ml volumetric flask. For KSCN solution, 5 g of KSCN (SYSTERM) was weighed with balance (Fisher Scientific, USA). The chemical was then dissolved in Deionised Water (DIW) up to the mark of 50 ml volumetric flask at room temperature. KSCN reacted with DIW, and therefore gave a deep red coloration to solution containing Fe3+. Then, 300 µl of the 6N HNO3 containing 1% H2O2 solution was pipetted into wells to make the total volume of 1 ml in each well. The iron was detected at 405 nm in the assay using a microplate reader (Infinite@200 PRO, TECAN, Switzerland). The absorbance of the standard samples and SPION-C595 samples were measured. As long as the volume of the standard samples and the compound samples were the same, final concentration of the SPION-C595 was directly calculated from the least squares regression line of standard curve.
The amount of immobilised antibodies in SPION-C595 was estimated based on the Quick StartTM Bradford protein assay 19. The assay was based on the theory that when protein binds, the pKa of the dye shifts causing the dye to be-come blue.
Cell viability: MCF-7 cells were grown in culture flasks with media (15 ml media/175 cm3) and incubated at 37ºC, in a humidified atmosphere of 95%/5% air/CO2. The me-thylthiazolydiphenyl-tetrazolium bromide (MTT) reagent was freshly prepared at 5 mg/ml in a sterile PBS, filtered through 0.2 µm syringe filter and further diluted in a fresh culture medium to obtain a final concentration of 600 µg/ml. A 20 µl of MTT solution was added to the cold culture medium in each well, and 200 µl of culture medium containing the MTT reagent was incubated for 3 to 5 hr. At the end of the incubation, the supernant was aspirated carefully and the water insoluble formazan salt was solublized in 100 µl DMSO per well. After 10 min incubation at 37°C, optical density of the violet was measured by a microplate reader at a primary wavelength of 570 nm and a reference wavelength of 620 nm. The cell viability was calculated by applying the following formula:
Cell viability= (OD Samples – OD Blank)/ (OD Negative control – OD Blank)
The percentage inhibition was calculated as:
%Inhibition=(1-cell viability)x100%

MR imaging protocol: MR imaging was performed by Signa HDxt 1.5 T, Optima at IPPT, USM. A matrix size of 256×128 was used for data reconstruction by 2-D Fourier transformation. The samples were placed at the center of the standard circular polarized head coil. The field of view was 20 mm. The slice thickness and number of slices were 3 without distance between the slices.
To determine T2 relaxivity (R2), the T2 relaxation times of six concentrations (200, 100, 50, 25, 12.5, 6.25 µg Fe/ml) of each D-SPION and SPIONs-C595 were measured and their signal intensity was extracted by Image J software. Distilled water was used as the control for all studied samples. The SPIONs were diluted in distilled water and the SPION-C595 was diluted by 0.9 normal saline solutions. Images were obtained using T2-weighted images method with TR= 2000 ms and TE=12, 24, 36 and 48 ms. The measurement of signal intensity was performed on the images using region of interest (ROI) with a constant size for all echoes. Magnetic resonance signal intensities were driven by the following equation 4:
SI= M0 (e-TE/T2)(1-e-TR/T1)
when the T2 relaxation rate of the superparamagnetic nanoparticles increases, its ability to shorten the proton relaxation time becomes stronger. Relaxivity was also calculated by plotting 1/T2 over concentration and determining the slope of the regression line.




Results :

Surface chemistry: The FT-IR spectra of nanomag®-D-spio (sample 1) and SPIONs-C595 (sample 2) were presented in figure 2 which demonstrated the conjugation of C595 mab with the iron oxide nanoparticles. Carboxylic acids show a strong wide band at the O-H stretch in the region of 3300-2500 cm-1. The broad band was shown in the IR spectrum of nanomag-D-spio, even though it became broader after conjugation because the O-H stretch band of carboxylic acids exists as hydrogen-bonded dimers. The broad band at 3291 and 3271 cm-1 corresponds to the O-H groups in the dicarboxylic acid structure.
The characteristic peak corresponding to the stretching vibration of the Fe-O bond shifted to a higher wave numbers of 713 cm-1 (sample 2), compared to 709 cm-1 (sample 1) reported for the stretching of the Fe-O in bulk Fe3O4 after conju-gating with C595 mab 10.
The carbonyl stretch C=O of carboxylic acids appeared as an intense band from 1760-1690 cm-1. However, according to figure 2, the conversion of the COOH group to EDC collapses the carbonyl band to a simpler structure at about 1738 cm-1, typical of an electron-deficient ester carbonyl. The C-O stretch appeared alongside it in the region of 1320-1210 cm-1. The -CH2 stretching vibrations presented on SPION-C595 (sample 2) were seen to increase intensity following the at-tachment of the mab onto the nanoparticle. The amine group stretching vibrations at 1105 and 1031 cm-1 also in-creased in absorbance in sample 2.
In the IR spectra of proteins, the secondary structure is most clearly reflected by the amide I and amide II bands, particularly the former, which had absorption of around 1620 to 1690 cm-1 and is primarily associated with the stretching vibrations of peptide carbonyl groups 20. Evidence for the half-amide/ester structure (sample 2) was found in the FT-IR spectrum in which both the ester and the amide carbonyl peaks were clearly seen at 1738 cm-1 which confirmed the successful surface modification.
SEM and EDAX: Results of the SEM for nanomag®-D-spio and SPI-ONs-C595 samples are shown in figures 3 and 4. Figure 3A represents the morphology and figure 3B represents the EDAX spectrum of nanomag®-D-spio. Elemental analysis of nanomag®-D-spio revealed the pre-sence of iron and oxygen atoms, in a percentage that indicates iron oxides. Figure 4A shows the SPIONs-C595 morphology of nanoparticles with round and smooth surfaces, while figure 4B shows the elemental analysis of nanoprobe. EDAX results suggested the presence of iron and oxygen elements, which conforms to the presentation of iron after conjugation with C595 antibodies 21.
Particle size and PCS: The size of nanoparticle as well as the surface charge of contrast agents after conjugation with C595 mab was measured. The spherical shape, average particle size, and the width of the particle size distribution (polydispersity) was estimated by Dynamic Light Scanning (DLS) and results are presented in table 1 and it shows the z-average hydrodynamic diameter of nano-mag®-D-spio and SPIONs-C595. Also, the size of NP was reported to be 51.3±0.07 nm with a polydispersity index of 0.2. The z-average hydrodynamic diameter of NP increased after conjuga-tion with C595 mab to 87.4±0.7 nm with a polydispersity index of 0.3, which was still an ideal size for application in transfection.
Iron and protein concentration determination: The amount of iron in the SPION-C595 nanoprobe was estimated using the Potassium Thiocyanate method. The final iron concentration of the nanoprobe was directly calculated from the least squares line of the standard curve (Figure 5). The calibration curve was plotted according to the absorbance of different concentrations of standard iron versus the samples as an unknown sample. The final iron concentration of the SPION-C595 nanoprobe was 600 μgFe/ml. The final antibody concentrations of the SPION-C595 nanoprobe were directly calculated from the least squares line of the standard curve (Figure 6). The R2 was calculated as 0.9904 (which was close to 1). The final antibody concentration of the SPION-C595 nanoprobe was 0.78 μg protein/ml.
SPIONs-C595 Uptake: The cellular uptake of the SPIONs-C595 nanoprobe was verified on cancerous (MCF-7) and nor-mal (EA. hy926) cell lines. Atomic Absorption Spectroscopy (AAS) results of the same concentrations of SPION-C595 were applied; both cell lines are shown in figure 7. This figure shows the iron content of each cell lines after 6 hr of incubation with different concentrations of SPION-C595 measured using the AAS technique. At lower concentrations (25 and 50 μgFe/ml), the iron content in EA.hy926 and MCF-7 was the same. 100 μg Fe/ml of nanoprobe caused the iron content in MCF-7 to increase, while at 200 μgFe/ml, the iron content of SPIONs-C595 in MCF-7 was significantly higher than that in EA.hy926. The results shows that, by increasing the concentration of the compound, the possibility of attachment of the nanoprobe to the breast cancer cells is increased compared to normal cells.
Cell viability: To assess any potential cytotoxicity of these SPI-ONs towards the cells, they were exposed to different SPION concentrations (1.56, 3.12, 6.25, 12.50, 25.00, 50.00 μgFe/ml) for 2, 8, 24, and 48 hr and analyzed by MTT assays for cell viability and results are shown as ±SD (Figure 8). As seen from this figure, there was no cytotoxicity upon conjugation, even at the highest concentration of components.
T2-weighted MR imaging: To evaluate the T2 enhancing capability of the SPI-ONs-C595, nanoparticles before and after conjugation were imaged with different concentrations using T2 spin-echo pulse sequence and the base was (1% aga-rose gel) to reduce the noise of background during imaging protocol and results are presented in table 2 and figure 9. As the results show, the magnetic resonance contrast enhancement of SPIONs-C595 in MCF-7 was evaluated with various concentrations of contrast agent and a good linear correlation between R2 and the iron concentration was established. When the T2 relaxation rate of the studied nanoparticle increases, its ability to shorten the proton relaxation time increases.
In addition, the reduction of the spin-spin relaxation times (T2) was observed from the lowest to highest concentrations, in which the signal intensity of the T2-weighted images decreased. The negative (T2) contrast agents are so-called because they reduce magnetic relaxation times which results in a hyperintense change of resonance signal in MR imaging. This observation showed that T2-weighted signal intensities of SPION-C595s treated MCF-7 cell were darker than those untreated EA.hy926 cells as the control for all Fe concentrations used 22. The reductions in magnetic relaxation of water protons in the presence of SPION-C595 are caused by the very strong relaxation of spins in an inhomogeneous magnetic field which gives rise to the magnetic nuclei of the SPIONs conjugated C595 mab 4,11.




Discussion :

Surface chemistry modification of SPION-C595 is critical to ensure that the conjugation of the nanoparticles and C595 mabs. Evidence for the half-amide/ester structure was found in the FT-IR spectrum in which both the ester and the amide carbonyl peaks were clearly seen at 1738 and 1640 cm-1 which confirmed the successful surface modification. In addition, the IR spectra of protein, the secondary structure is most clearly reflected by the amide I and amide II bands, which have absorption of around 1620 to 1690 cm-1. It was reported that the magnetic nanoparticle surface modification can increase protein absorption and assist the nanoparticles uptake in cancer cells.
EDAX results suggested the presence of iron and oxygen elements, which conforms to the presentation of iron after conjugation with C595 antibodies 21. The increase in hydrodynamic size of the nanoparticle after conjugation was about 30 nm, thus, indicating antibody conjugation with the nanoparticle. The polydispersity value stood at 0.3, indicates that the nanoparticle suspension was almost homogenous, in terms of the biomedical and bioengineering applications of any nanoparticle including iron oxide, the size must be smaller than 100 nm with overall narrow particle size distribution, so that the particles have uniform physical and chemical properties 22.
By the EDC method obtained in this research, the amine group was added to improve the chance of attachment of the C595 mab onto the surface of nanoparticles. As a result, the surface charge of nanoparticle reduced after conjugation. Therefore, the cell phagocytosis rate of nanoparticle with positively-charged surface was faster that the nanoparticle with neutral or negatively-charged surfaces. Due to the fact that nanoparticles with positively-charged surface are able to adhere more easily to the negatively-charged surface of cell membranes by electrostatic interaction.
Iron belongs to a group of elements known as transition metals, as it is essential element for the survival of almost all organisms that live in an oxygen-rich environment. It is required for many metabolic processes such as oxygen transport, drug metabolism, cellular respiration, electron transport, and cell proliferation. Thus, according to the results of cellular uptake (Figure 7), iron was detected in the control sample. Therefore, at lower concentration of SPIONs-C595 after incubation with normal cells. The results of SPIONs-C595 uptake by the cells shows that, by increasing the concentration of the compound, the possibility of attachment of the nanoprobe to the breast cancer cells is increased compared to normal cells. The results suggest that compared to the breast cancer cells, there is no significant cellular uptake by the normal cells after administration of a higher SPIONs-C595 dose. As can be seen from figure 9, the mag-netic resonance contrast enhancement of SPIONs-C595 in MCF-7 was evaluated with various concentrations of contrast agent and a good linear correlation between R2 and the iron concentration was established. When the T2 relaxation rate of the studied nanoparticle increases, its ability to shorten the proton relaxation time increases 11.
The T2 values refer to the speed of magnetization in the plan perpendicular to the static magnetic field loose coherence. The results of T2-weighted images showed the reduction of the spin-spin relaxation times (T2) from the lowest to highest concentrations, in which the signal intensity of the T2-weighted images decreased. The negative (T2) contrast agents are so-called because they reduce magnetic relaxation times which results in a hyperintense change of resonance signal in MR imaging. This observation showed that T2-weighted signal intensities of SPIONs-C595 treated MCF-7 cell were darker than those untreated EA.hy926 cells as the control for all Fe concentrations used 23. The reductions in magnetic relaxation of water protons in the presence of SPIONs-C595 are caused by the very strong relaxation of spins in an inhomogeneous magnetic field which gives rise to the magnetic nuclei of the SPIONs conjugated C595 mab 4,11. The diffusion of water molecules around the magnetic centres leads to the partial averaging of local magnetic fields experi-enced by a spin during MR imaging 24.




Conclusion :

The use of SPIONs-C595 nanoprobe was demonstrated via several characterization techniques, such as FT-IR, SEM-EDAX, Zetasizer and protein and iron concentration measurements. As the results showed, SPIONs-C595 provided active targeting of breast cancer cell (MCF-7) at a final concentration of 600 µgFe/ ml. Moreover, the final concentration of protein was calculated to be at 0.78 µgprotein/ml. The hydrodynamic size of the nanoprobe was 87.4±0.7 nm, 30 nm more than the actual size of the SPIONs due to the increase in the size from the attachment of C595 mab to SPIONs. The MR imaging results showed a good reduction of T2 relaxation rates for the highest dose of SPIONs-C595. Based on the results of the present study, SPIONs-C595 nanoprobe has a potential in T2-weighted MR imaging contrast agent for breast cancer (MCF-7) cell detection.




Acknowledgement :

This study is a part of Ph.D. thesis (University Sains Malaysia, 2016) carried out by the first author under the supervi-sion of the second author and with the help and advice of other co-authors as the advisers. We would like to express our special thanks to University Sains Malaysia for providing us the financial and technical support required for car-rying out this research.




Conflicts of Interest :

There are no conflicts of interest.





<p>Figure 1. Bioconjugation scheme for SPIONs-C595s by using EDC.</p>

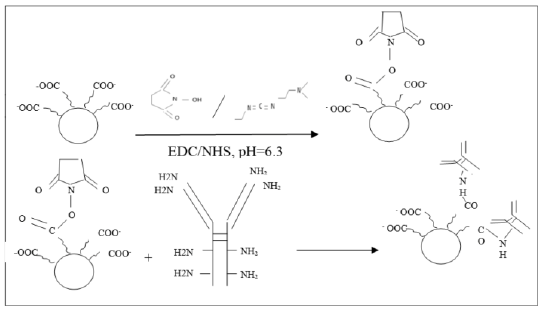

Figure 1. Bioconjugation scheme for SPIONs-C595s by using EDC.

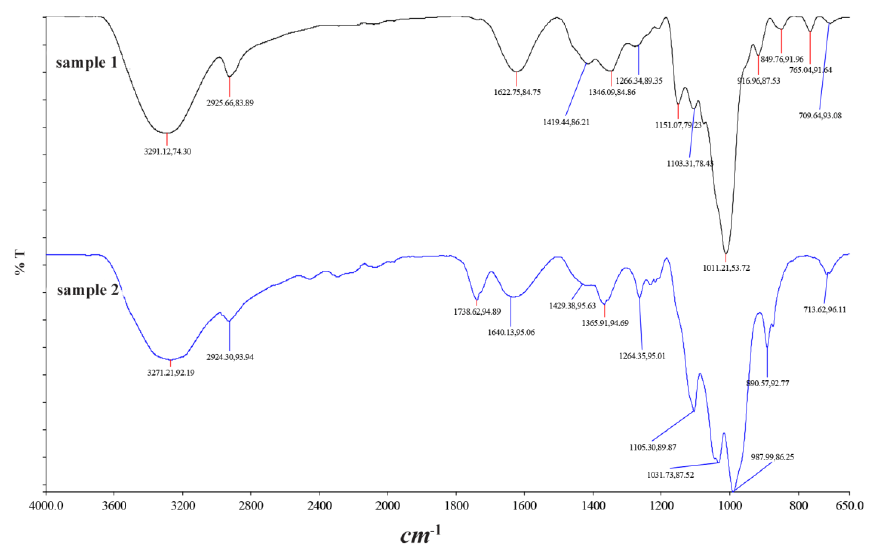

<p>Figure 2. FT-IR result of freeze dried nanomag&reg;-D-spio (sample 1) and SPION-C595 (sample 2).</p>

Figure 2. FT-IR result of freeze dried nanomag®-D-spio (sample 1) and SPION-C595 (sample 2).





<p>Figure 3. A) SEM morphology of the nanomag&reg;-D-spio and B) EDAX spectrum of nanomag&reg;-D-spio in black line.</p>

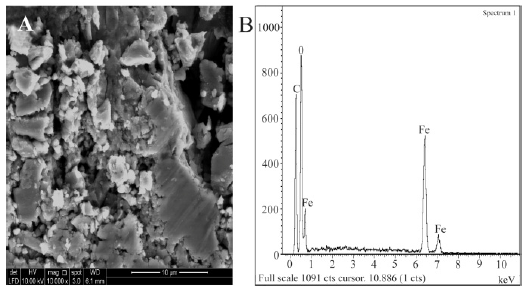

Figure 3. A) SEM morphology of the nanomag®-D-spio and B) EDAX spectrum of nanomag®-D-spio in black line.





<p>Figure 4. A) SEM morphology of the SPIONs-C595 and B) EDAX spectrum of SPIONs-C595 in black line.</p>

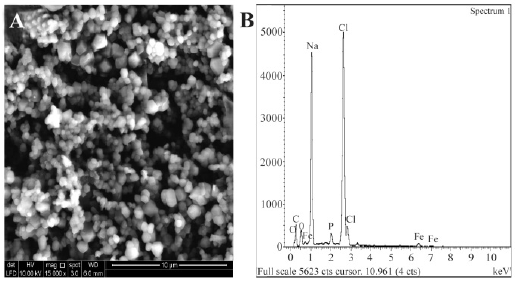

Figure 4. A) SEM morphology of the SPIONs-C595 and B) EDAX spectrum of SPIONs-C595 in black line.

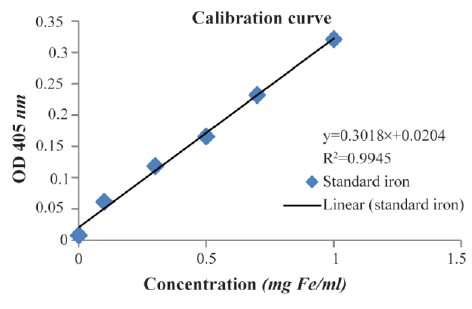

<p>Figure 5. Standard curve of Iron standard concentration (<em>m</em><em>gFe/ml</em>) versus absorbance at 405 <em>nm.</em></p>

Figure 5. Standard curve of Iron standard concentration (mgFe/ml) versus absorbance at 405 nm.

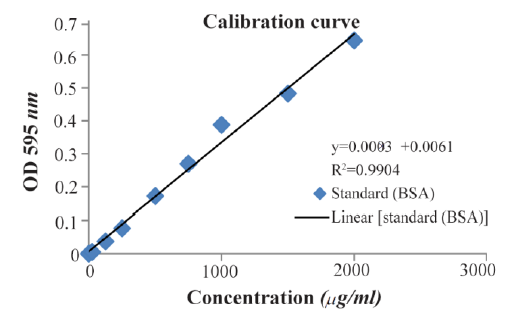

<p>Figure 6. The standard curve of BSA concentration measurements. UV-visible spectroscopy measurement was carried out for known concentration of BSA at the absorbance maximum of 595 <em>nm</em></p>

Figure 6. The standard curve of BSA concentration measurements. UV-visible spectroscopy measurement was carried out for known concentration of BSA at the absorbance maximum of 595 nm

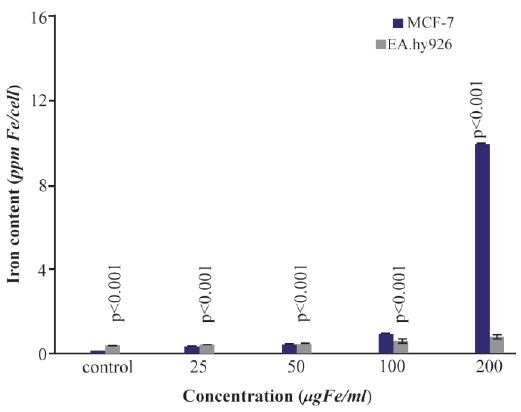

<p>Figure 7. Iron uptake in MCF-7 and EA.hy926 cells. Cells were incubated with 25-200 <em>&mu;gFe/ml</em> of SPIONs-C595s at 37<em>&ordm;C</em> for 6 <em>hr</em></p>

Figure 7. Iron uptake in MCF-7 and EA.hy926 cells. Cells were incubated with 25-200 μgFe/ml of SPIONs-C595s at 37ºC for 6 hr

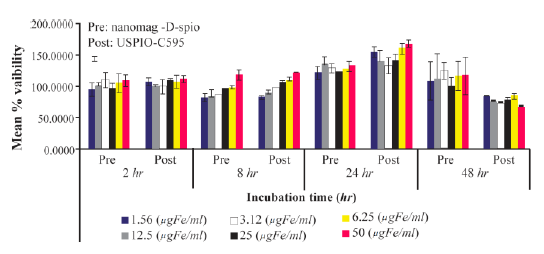

<p>Figure 8. Viability of MCF-7 cells exposed to different concentrations (6.25-100 <em>&micro;gFe/ml</em>) of Nanomag<sup>&reg;</sup>-D-spio and SPIONs-C595 for different time points, 2 to 48 <em>hr.</em></p>

Figure 8. Viability of MCF-7 cells exposed to different concentrations (6.25-100 µgFe/ml) of Nanomag®-D-spio and SPIONs-C595 for different time points, 2 to 48 hr.

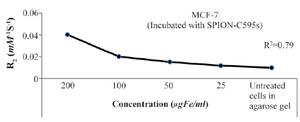

<p>Figure 9. The graph of R<sub>2</sub> versus different concentrations of SPIONs-C595 after 6 <em>hr</em> of incubation with MCF-7 cells</p>

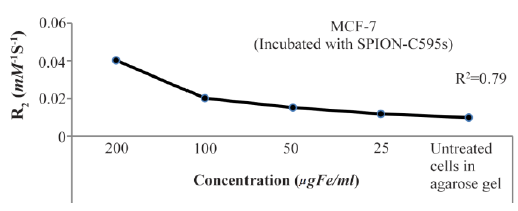

Figure 9. The graph of R2 versus different concentrations of SPIONs-C595 after 6 hr of incubation with MCF-7 cells

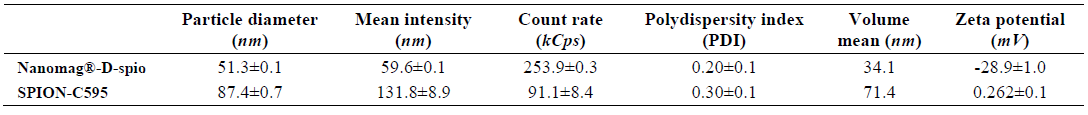

<p>Table 1. Analysis of particle size and zeta potential of nanomag&reg;-D-spio and SPIONs-C595. Results are displayed as AV&plusmn;SD (n=2)</p>

Table 1. Analysis of particle size and zeta potential of nanomag®-D-spio and SPIONs-C595. Results are displayed as AV±SD (n=2)

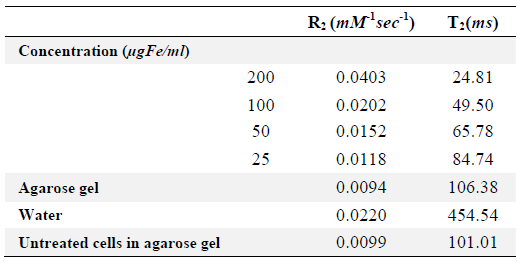

<p>Table 2. T<sub>2</sub> relaxation time and relaxivity (R<sub>2</sub>) values of MCF-7 cells incubated with different concentrations of SPIONs-C595 incubated with MCF-7 after 6 <em>hr</em></p>

Table 2. T2 relaxation time and relaxivity (R2) values of MCF-7 cells incubated with different concentrations of SPIONs-C595 incubated with MCF-7 after 6 hr
