Construction of CTLA-4-Ig Fusion Gene in pBudCE4.1 Expression Vector


PDF - Export to EndNote - PubMed Central XML format - PubMed Central XML format

PMID: 26605013 (PubMed) - PMCID: PMC4629461 - View online: PubReader
Volume 7, Issue 4, October-December , Page 179 to 181
Tuesday, May 5, 2015 :Received , Sunday, July 12, 2015 :Accepted

  • Corresponding author Shiraz Institute for Cancer Research (ICR), Faculty of Medicine, Shiraz University of Medical Sciences, Iran, Tel: +98 71 32303687 E-mail: ghaderia@sums.ac.ir

Abstract:

Background: CTLA-4 inhibitory signals prevent cell cycle progression and IL-2 production, leading to a halt on an ongoing immune response. CTLA4-Ig fusion proteins contain the extracellular domain of CTLA-4 and Fc fragment of human IgG antibody. In this study we aimed to fuse the ctla-4 gene encoding the extracellular domain of CTLA-4 molecule with igg1 gene encoding Fc region of human IgG.
Methods: After primer design, PCR reaction was performed using pfu polymerase enzyme and specific primers. PCR amplified fragment was ligated into the vector containing the human igg1 gene. The resulting fusion fragment of ctla-4 and human igg1 genes was ligated to pBudCE4.1 expression vector.
Results: Extracellular domain of ctla-4 gene was ligated to igg1 gene and then ctla4-ig fragment was cloned into pBudCE4.1 vector. Construction of the expression vector was confirmed by restriction pattern analysis and sequencing.
Conclusion: By confirming the construct, in the next step, the recombinant DNA will be used to produce CTLA4-Ig recombinant protein for the clinical uses.







Introduction :

Following the T cell activation, cytotoxic T lymphocyte antigen-4 (CTLA-4), a negative regulatory molecule, will be expressed on T cells 1,2. CTLA-4 is a homolog of CD28 but binds B-7 molecules with greater affinity. Inhibitory signals of this molecule inhibit cell cycle progression and IL-2 production, leading to a halt on an ongoing immune response 3-6.
Regarding the central role of CTLA-4 in down-regulation of the immune responses, co-stimulatory receptors became an important target for drug development. The best example is the CTLA4-Ig fusion protein, containing the extracellular domain of CTLA-4 and the constant region of human IgG antibody. This fusion protein can inhibits T cells dependent
immune responses 5,7,8. In this study we aimed to fuse extracellular domain of ctla-4 gene to Fc region of human igg1 gene. This recombinant DNA could be used to produce CTLA4-Ig protein and studding its function in future studies.




Materials and Methods :

Enzymes and chemicals: All chemicals and antibiotics were purchased from Sigma, Merck (Germany) and Invitrogen (France), unless stated otherwise. DNA-modifying enzymes and restriction enzymes were obtained from Fermentas.

Vectors, microorganisms and growth conditions: Escherichia coli DH5α (CinnaGen, Iran) as a host and pBudCE4.1 as an expression vector were used. IgG1 containing vector was provided kindly by Dr. Rabbani (Avicenna Research Institute, Iran). Escherichia coli (E. coli) were cultured in LB medium at appropriate temper-ature (37°C) with shaking (150 rpm).

PCR amplification and CTLA4-Ig fragment construction: Extracellular domain of ctla-4 gene was amplified using specific primers (CTLA4-FOR/CTLA4-fuse) and pUCCTLA4 vector as template. For subsequent cloning of the PCR-derived fragments, SalI and BamHI restriction sites were added to the 5’-end of these primers, respectively (Table 1). pUCCTLA-4 (synthetic construct) was used to amplify the ctla-4 gene with pfu polymerase enzyme. PCR products were purified by High Pure PCR Product Purification Kit (Roche, Germany). The purified fragment was digested simultaneously with vector containing human igg1 gene using SalI/BamHI enzymes and then were ligated. E. coli DH5α cells were transformed using CaCl2 method 9. Recombinant colonies were confirmed by PCR using specific primers. Plasmid DNA preparation was done using QIAGEN Mini Prep Kit (Germany).

Construction of CTLA4-Ig expression vector: Vector containing the ctla4-ig fragment digested by SalI/XbaI enzymes and subcloned into pBudCE4.1 SalI/XbaI cloning sites with the methods mentioned before. Recombinant colonies were confirmed by digestion with cloning enzymes and PCR pattern.

Sequence and computer analysis: Cloned DNA fragment in pBudCE4.1 (50-200 ng/μl) was sequenced by a Commercial Service (Bioneer, South Korea).




Results :

ctla-4 fragment was amplified using specific primers and pfu polymerase. A specific band about 483 bp showed the expected size (Figure 1). Extracellular domain of ctla-4 gene was inserted into the SalI and BamHI pGEMIgG vector and designated as pGEMCTLA4-Ig. The new construct was confirmed by restriction pattern using SalI/BamHI and SalI/XbaI enzymes and PCR product pattern. According to the size of ctla-4 gene external domain (483 bp) and igg1 gene (993 bp), the resulting fragment (1476 bp) confirmed the fusion of extracellular domain of ctla-4 to human igg1 gene (Figure 2).
To clone ctla4-ig fragment in pBudCE4.1 expression vector, pGEMCTLA4-Ig construct was digested and gel purified fragment was cloned into pBudCE4.1 vector. Construction of the expression vector was confirmed by restriction pattern analysis using SalI and XbaI. The cloned fragment was sequenced by T7f/pBudCE4.1r universal primers. DNA sequencing showed an open reading frame, 1476 bp in length, encoding a 492 amino acid polypeptide. The new construct designated pBudTJ1 is shown in figure 3.




Discussion :

Co-stimulatory molecules play a critical role in controlling the immune response. The central role of CD28 family, especially the CTLA-4, makes it a useful tool for immunotherapy in autoimmune disease and transplant rejection 6,10.
Two approaches have been selected in respect to the potential clinical applications of CTLA-4 in immunotherapy, anti CTLA-4 antibody and CTLA4-Ig, respectively 7,11. CTLA4-Ig is a fusion protein containing the extracellular domain of CTLA-4 and the Fc portion of human IgG1. This protein is capable of preventing the stimulatory effect of CD28 through competing and binding to B-7s on APCs 12-14.
In this study, we have fused the extracellular domain of CTLA-4 to the Fc fragment of the human IgG1 antibody. The resulting construct was ligated to pBudCE4.1 expression vector and confirmed by sequencing. Analysis of the fusion sequence revealed an open reading frame encoding a protein of 445 amino acids with predicted molecular mass of about 50 kDa without glycosylation (ExPASy). In subsequent study, this recombinant DNA can be used to produce CTLA4-Ig recombinant protein.




Acknowledgement :

This work was supported by a grant from Shiraz University of Medical Sciences (grant number: 93-7146) and in part by Shiraz Institute for Cancer Research (grant number: ICR-100-506). This study was conducted as a requirement for the pharmacy student thesis defended by Tayebeh Jahangeerfam in Shiraz School of Pharmacy.





Figure 1. ctla-4 gene PCR product with Pfu polymerase enzyme
M: 1 kb ladder
1: PCR product using specific primers (CTLA4- FOR / CTLA4-fuse).
Figure 1. ctla-4 gene PCR product with Pfu polymerase enzyme M: 1 kb ladder 1: PCR product using specific primers (CTLA4- FOR / CTLA4-fuse).




Figure 2. Confirmation of new construct with digestion pattern
A) 1: Digestion of vector containing igg1 gene with SalI/XbaI enzymes
2. Digestion of new construct with SalI/XbaI enzymes
B) 1: Digestion of new construct with SalI/BamHI enzymes.
Figure 2. Confirmation of new construct with digestion pattern A) 1: Digestion of vector containing igg1 gene with SalI/XbaI enzymes 2. Digestion of new construct with SalI/XbaI enzymes B) 1: Digestion of new construct with SalI/BamHI enzymes.

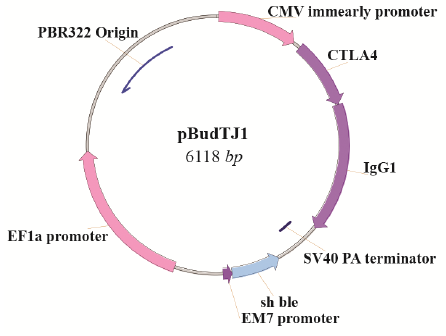

Figure 3. pBudTJ1 schematic view.
Figure 3. pBudTJ1 schematic view.

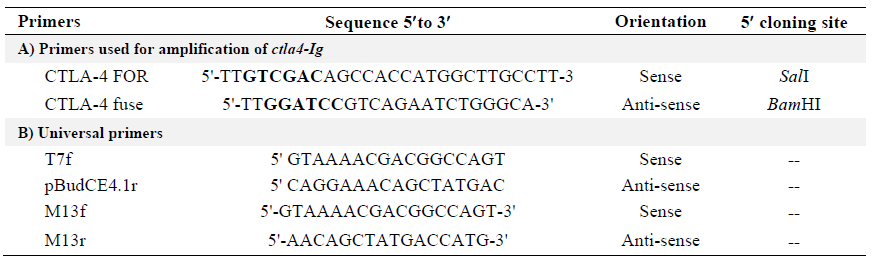

Table 1. Oligonucleotides (primers) used in present study (restriction sites were showed in bold)
Table 1. Oligonucleotides (primers) used in present study (restriction sites were showed in bold)
