Expression of Shigella flexneri ipaB Gene in Tobacco


PDF - Export to EndNote - PubMed Central XML format - PubMed Central XML format

PMID: 23799180 (PubMed) - PMCID: PMC3689555 - View online: PubReader
Volume 5, Issue 2, April-June , Page 118 to 124
Thursday, August 1, 2013 :Received , Monday, October 22, 2012 :Accepted


  • - Molecular Biology Unit, Pasteur Institute of Iran, Tehran, Iran
  • Corresponding author Molecular Biology Unit, Pasteur Institute of Iran, +98 21 66953311;
    - Molecular Biology Unit, Pasteur Institute of Iran, Tehran, Iran
  • Corresponding author Molecular Biology Unit, Pasteur Institute of Iran, Tehran, Iran, +98 21 66953311; p_ehsani@yahoo.com
    - Molecular Biology Unit, Pasteur Institute of Iran, Tehran, Iran

Abstract: Background: Shigellosis is a leading cause of diarrhea in many developing countries and although the disease can be controlled and managed with antibiotics, the constant emergence of resistant species requiring ever newer antibacterial drugs make development of an effective vaccine necessary. The bacteria are highly contagious and since immunity to Shigella is serotype-specific a multi-serotype vaccine is required for adequate protection. Proteins encoded by Shigella invasion plasmid, which are part of the Type Three Secretion System (TTSS) of this bacteria, are good candidate as vaccine targets since they are both immunogenic and conserved between different Shigella species. The advent of molecular farming, which is a low cost system, has opened up new venues for production of recombinant proteins. In view of the difficulties encountered in expressing IpaB in Escherichia coli (E. coli), the feasibility of the expression of this protein in tobacco has been investigated. Methods: The ipaB gene was cloned in place of the Hygromycin gene in pCambia1304 containing GFP as a reporter gene. The vector was then transferred into competent Agrobacterium tumefaciens (A. tumefaciens) strain LBA4404 which was used for agro-infiltration of Nicotiana tobaccum (N. tobaccum) leaves. Transformation was confirmed by expression of GFP. The gene was also cloned in pBAD/geneIII A and transformed E. coli host containing the construct was induced using different amounts of L-arabinose as inducer. Expression of IpaB gene by both hosts was determined by Western blotting using anti-IpaB monoclonal antibody. Results: The data obtained showed that IpaB was expressed in plant leaves but expression in E. coli was not detectable. Conclusion: This study showed that N. tobaccum is capable of expressing this protein without its specific chaperon and in levels detectable by Western blotting.






Introduction :
Diarrhea caused by Shigella species is a severe disease with high morbidity and mortality especially in developing countries 1. It has been estimated that in Asia 91 million Shigella episodes and 414,000 deaths occur annually with Shigella flexneri being the most common serotype 2. As few as 10 organisms can cause illness and the low infective dose makes these bacteria highly contagious with oral-fecal contact being the predominant route of transmission from person to person. Shigella dysenteriae (S. dysenteriae), Shigella flexneri, Shigella sonnei, and Shigella boydii are the four species that comprise the Shigellae genus and are divided into over 45 serotypes depending on the structure of the O antigen component of their outer membrane lipopolysaccharide 1,3. The Shiga toxin-producing S. dysenteriae serotype 1 causes the most severe infections including hemolytic uremic syndrome as well as dysentery epidemics 4.
Although vaccine development has been a priority for the World Health Organization for many years, no licensed vaccine is as yet available and the emergence of drug resistant strains makes the development of an effective vaccine even more urgent 5-7. Approaches to vaccine development have included the use of killed 8, live attenuated 9-12 and recombinant carrier 13 organisms, polysaccharide conjugates 14,15, and LPS-protein mixtures 16,17. The shortcomings of these candidate vaccines have been either poor immunogenicity or high reactogenicity when tested in humans. Furthermore, it has been shown that immunity to Shigella is serotype-specific, limiting the scope of protection offered by these experimentally developed vaccines and necessitating the development of a multi serotype vaccine for adequate protection 3.
Shigellae species, like many gram-negative bacteria, rely on a TTSS as an essential virulence component which is present at a density of 50 to 100 per bacterial cell and resembles a molecular needle and syringe. The needle tip complex is composed of the invasion plasmid proteins, IpaB, IpaC and IpaD which are required for invasion of epithelial cells as well. These proteins are conserved between different Shigella species and serotypes making them desirable for use as candidate vaccines. The protective efficacy of antibodies against IpaB and IpaD (especially IpaB) was demonstrated recently in a mouse model of intranasal immunization and pulmonary challenge with homologous and heterologous strains 3.
Hydrophobic IpaB protein is encoded by 1743 bp gene with an apparent molecular weight of 57 kDa and its production in E. coli has been difficult. Expression of IpaB in E. coli has been only achieved fused with thioredoxin or complexed with its chaperon IpgC 18,3 which in both cases require additional steps to purify the recombinant protein.
Plants have been increasingly used for production of genetically engineered biological products in recent years and the term "Molecular farming" has been coined to describe this process 19. Several advantages are attributable to this eukaryotic host such as low cost of production, ease of scale up, ability to perform eukaryotic modification of the product post-translationally 20. N. tobaccum has been widely used in molecular farming as a non-food and non-forage product that is easy to manipulate and contains high fresh leaf weight and seed 21. This is the first study on production of IpaB protein in plants.




Materials and Methods :
Constructs for expression in tobacco and E. coli: The IpaB coding region from Shigella flexneri for expression in tobacco plants and E. coli was amplified using the following primers, which were designed in this study:
ipaB-tob-F: 5’-aata ctc gag gcc gcc acc atg cat aat gta agc acc aca ac-3’
ipaB-tob-R: 5’-atat ctc gag tca tag ctc atc ttt ctc aga gtg gtg gtg gtg gtg gtg agc agt agt ttg ttg caa att g-3’
ipaB-eco-F: 5’-ata gca cca tgg gac ata atg taa gca cca ca-3’
ipaB-eco-R: 5’-agc tct aga gta gtt tgt tgc aaa att g-3’
Forward primer for cloning the PCR product in pCambia1304 (a gift from Dr. Rajabi Memari; Shahid Chamran University of Ahvaz), contained restriction site for XhoI (bold) and Kozak sequence (underlined). In the reverse primer a restriction site for Xho1 (bold), a KDEL retention signal (underlined), and His-tag sequence (italic) were included. Restriction sites for enzymes NcoI and XbaI were incorporated in forward and reverse primers used for amplification of the gene for E. coli system, respectively.
The chemicals were purchased from Sigma and Merck companies, the enzymes and molecular weight markers were purchased from Fermentas, Lithuania.
The molecular biology techniques were done according to the gene cloning manual 22.The gene for use in both plant and bacterial system was amplified according to the Enzyme manufacturer protocol (Fermentas, Lithuania), briefly in aliquots of 50 μl containing 500 ng of template, 1.5 U High Fidelity Enzyme Mix, 2 mM MgSo4, 200 µM dNTP mixture 1 µM of each primer (Gene Fanavaran, Tehran). The mixture was subjected to an initial denaturation at 94°C for 3 min, followed by 35 cycles of denaturation at 95ºC for 45 s, annealing at 60°C for 45 s and extension 72°C for 4 min and a final extension of 72°C of 10 min. PCR products were visualized by UV and eluted by gel extraction kit (Fermentas, Lithuania) according to manufacturer’s instructions. The purified fragments were cloned in pTZ57T according to the supplier’s instructions (Fermentas, Lithuania) and sequencing was performed by a commercial facility (Gene Fanavaran, Tehran).
After the sequence verification, the fragment to be cloned in pCambia1304 containing Kanamycin resistance gene was digested with XhoI and ligated with similarly digested vector which had been treated with shrimp alkaline phosphatase in place of hygromycine. Orientation of the cloned gene was determined by digestion with EcoRI.
The vector containing ipaB gene with correct orientation was transformed into competent Agrobacterium tumefaciens strain LB4404 (kindly provided by Dr. Salmanian, National Iranian Genetic Engineering Center) by freeze and thaw method 23. Transformed bacteria were cultured on LB plates containing kanamycin (50 mg/ml) and incubated at 28°C for 2 to 4 days.
Agro infiltration of leaves of tobacco plant N. tabacum var. samsun (kindly provided by Dr. Rajabi Memari, (Shahid Chamran University of Ahvaz) was performed using the method described by D. Aoust et al 24. Briefly, a single colony of Agrobacterium LBA4404 containing recombinant plasmid was cultured in 5 ml LB medium containing kanamycin (50 mg/ml) at 120 rpm at 28°C for one day. Four hundred µl of the culture (OD=0.8) was centrifuged for 20 min at 4°C (2500 ×g). The pellet was dissolved in 1 ml of resuspension solution (10 Mm MgCl2, 10 mM 4-morpholino ethanesulfonic acid (MES), 20 g/l Sucrose, 100 μL Acetosyringone (100 μM) and 1% Tween 20 in MS media) and incubated for 1 hr at 28°C at 120 rpm. Tobacco leaves were immersed in bacterial suspension and transfered to a glass container attached to a vacuum pump (0.5 mbar) for 4 min. Breaking the pressure in container facilitates entry of bacteria into the leaves. The infiltrated leaves were then rinsed by sterile water and put in transparent containers and incubated at 28°C under continuous illumination for 7 days.
Expression of GFP in the leaves was investigated under UV light (350 nm), Image machine 440 CF (Kodak UK). A week after agro infiltration, the leaves were used for total protein extraction 25. Briefly, tobacco leaves were ground using mortar and pestle and liquid nitrogen and 1 g of leaf-powder was added to 1 ml of protein extraction buffer containing phenylmethylsulfonyl fluoride (2 mM). The plant extract was loaded to a 12% SDS-acrylamide gel 26 and after electrophoresis the proteins were transferred to nitrocellulose membrane (Schleider and Schull, Germany) for Western blotting using semi-dry blotting unit according to manufacturer’s instructions. The membranes were blocked with 0.5% skim milk in Tween-PBS and probed with anti-IpaB MAb (1:1000) a kind gift from Dr. Farida Nato, Pasteur Institute of Paris. Goat anti-mouse antibody (Sigma, USA) was used as the secondary antibody (1:8000) and the membranes were developed using DAB (3-3’Diaminobenzidine Sigma, USA). The HRP conjugated anti-5xHis antibody was purchased from Qiagen and added in 1/10000 dilution.
The sequence of the gene for IpaB amplified with primers containing NcoI and XbaI restriction sites was verified (Gene Fanavaran, Tehran) and after double digestion with these enzymes and gel purification was cloned in similarly digested and purified pBAD/gIIIA (Invitrogen, USA).
Competent E. coli Top 10 F’ (Invitrogen, USA) was transformed with the construct and the transformed bacteria were selected on LB plates containing 50 μl ampicilin. The transformed bacteria were induced with different amounts of L-arabinose according to the supplier’s specifications. SDS-PAGE and Western blotting was performed as described above with HRP-conjugated anti-myc (Invitrogen, USA).




Results :
The two amplified fragments are shown in figure 1 and the slight variation in size between the products is due to the additional sequences required for expression in tobacco.
The sequence of ipaB was verified after amplification and also after final cloning in plant expression vector. Prior to sequencing the orientation of the cloned gene in pCambia1304 was determined by EcoR I (Figure 2) which has one site in the vector and another in the ipaB gene located at position 353 bp. Therefore, gene cloned with correct orientation produced a 1413 bp fragment after digestion with EcoR I.
The transformed A. tumefaciens were then selected on plates containing kanamycin and transformation was further verified by colony PCR (Figure 3).
Expression of GFP was detected by UV showing that Agrobacterium expression cassette containing IpaB and GFP genes had been successfully transferred (Figure 4).
Western blot analysis showed 57 kDa protein corresponding to IpaB protein that is absent in extracts of non-transformed leaves using anti His antibody (Figure 5).
After subcloning ipaB in pBAD/gIII expression vector and its transformation into E. coli (Top10), IpaB failed to be synthesized under any of the conditions used. Co-expression of the gene in the presence of plasmids containing non-specific chaperones such as DnaK, groE was also attempted, but did not result in production of the protein (data not shown).




Discussion :
Recent studies have highlighted the importance of the Shigellae invasion proteins especially IpaB in inducing immunity against these bacteria which are a frequent cause of dysentery in areas of poor hygiene 3. These proteins are not produced by these bacteria in high abundance and are not readily purified from bacterial cultures 18. Therefore, to produce and purify the IpaB protein, recombinant technology was used. However, our attempt to express this protein in E. coli (Top10 expression host recommended by Invitrogen) using pBAD/gIII did not result in production of IpaB protein.
It had been shown that this protein could be expressed in E. coli fused to thioredoxin (Trx1) a small cytoplasmic protein which has been successfully employed as a fusion partner to increase the expression level and solubility of heterologous proteins in E. coli and seems to act mainly as a chaperone 25. Therefore, it seems that expression of IpaB in E. coli requires the presence of a chaperone either as a fusion partner, as was demonstrated by Picking et al who used Trx1, or IpgC which is specific for this and IpaC protein 18. Both of these strategies have disadvantages of requiring additional steps and time for cloning, separation and purification of IpaB, which lengthens the purification process and increases cost. IpaC also has been expressed in transgenic Arabidopsis. This protein is essential for bacterial entry into epithelial cells, capable of eliciting protective antibody responses in animal models. The expression level was 0.2% total plant protein 27.
Plants can produce proteins that are difficult or impossible to produce in bacteria, because unlike bacteria, inclusion bodies are not formed in plants eliminating the need for renaturation of product, thus avoiding any loss of activity. In addition, it is possible to lead the toxic proteins to intracellular compartments to protect cells from the toxic effects of the products. Transient expression also provides this advantage in addition to fast and higher expression level of recombinant proteins. A variety of genes have been expressed using agroinfiltration including interferons, growth hormone, antibodies and vaccine candidates 25. In addition, because of using non transgenic plants and short production period in controlled area, transient expression of the recombinant proteins does not produce any genetically modified foods and preventing social concerns 28.
The objective of this study was transient expression of ipaB using agro-infiltration technique. As efficiency of agro-infiltration depends on the ability of bacterial penetration inside the leaf tissue 29, the infiltration time and vacuum force is important. We found that 4 min infiltration at 0.5 mbar is sufficient for the transfer of Agrobacteria into tobacco leaves. Our findings also showed that in younger leaves the amount of recombinant proteins synthesized is higher indicating that the age of leaves affects the gene expression level (data not shown).
We used Kozak and KDEL sequences for enhancing the production of recombinant proteins. Kozak sequence lies within the 5' untranslated region of eukaryotic genes and directs translation of mRNA by causing the ribosome to pause and recognize the ATG codon. KDEL is a tetra amino acid sequence which keeps the protein from secreting out of endoplasmic reticulum, thus protecting the recombinant proteins from cytoplasmic proteases as well as preventing the addition of complex type glycosides 31.
pCambia1304 has been used to produce transgenic lines and contains GFP/GUS as reporter genes and hygromycin as antibiotic marker. Since in transient expression there is no need for plant selective marker we were able to use the selective marker site for expression of ipaB and GFP as a marker to determine the area of infiltration of the vector and the possibility of expression. To the best of our knowledge the gene replacement in this vector and the use of non-fused GFP as a reporter gene for successful transfer of Agrobacteria into tobacco leaves has not been previously documented.
Transient expression of recombinant proteins using agro infiltration is also more convenient for developing countries that do not have biosafety regulations for releasing the transgenic plants.




Acknowledgement :
We gratefully acknowledge the technical help on detection of GFP given by Ms. Torkashvand from the Biotechnology Department of the Pasteur Institute of Iran.

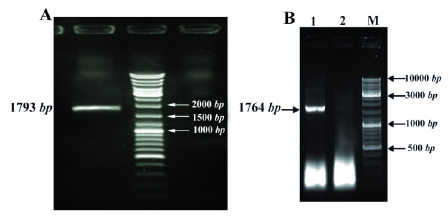

Figure 1. Amplification of ipaB gene by PCR with specific primers for plant. A) and E. coli; B) cloning. A) Lane 1; ipaB gene, Lane 2; MW Lane 3 negative control. B) Lane 1; ipaB gene, Lane 2; negative control, Lane 3; MW
Figure 1. Amplification of ipaB gene by PCR with specific primers for plant. A) and E. coli; B) cloning. A) Lane 1; ipaB gene, Lane 2; MW Lane 3 negative control. B) Lane 1; ipaB gene, Lane 2; negative control, Lane 3; MW




Figure 2. A) Restriction enzyme analysis of colonies of recombinant pCambia1304/ ipaB vector using EcoR I. (1-3) Lane 1: colony no. 1 containing ipaB in correct orientation, Lane 2: unrelated colony, Lane 3: colony no. 3 with reverse orientation; B) Schematic design of the vector containing IpaB gene
Figure 2. A) Restriction enzyme analysis of colonies of recombinant pCambia1304/ ipaB vector using EcoR I. (1-3) Lane 1: colony no. 1 containing ipaB in correct orientation, Lane 2: unrelated colony, Lane 3: colony no. 3 with reverse orientation; B) Schematic design of the vector containing IpaB gene




Figure 3. Colony PCR for confirmation of Agrobacteria grown on selective media. Lanes 1; positive clone, LM; molecular weight marker
Figure 3. Colony PCR for confirmation of Agrobacteria grown on selective media. Lanes 1; positive clone, LM; molecular weight marker




Figure 4. Verification of transfer of the expression cassette containing GFP to tobacco leaves; A) the control leaf; B) the agroinfiltrated leaf that received vector and expresses GFP
Figure 4. Verification of transfer of the expression cassette containing GFP to tobacco leaves; A) the control leaf; B) the agroinfiltrated leaf that received vector and expresses GFP




Figure 5. Western blot of leaf extract containing IpaB. Using anti His antibody, 1) infiltrated leaves, 2) MW, 3) plant negative control
Figure 5. Western blot of leaf extract containing IpaB. Using anti His antibody, 1) infiltrated leaves, 2) MW, 3) plant negative control
